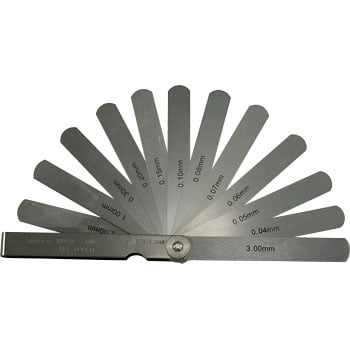

Moore & Wright Feeler Gauge Sets

MW-387M  LENGTH 75mm WIDTH 12.7mm 13 BLADES THICKNESS  0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.09, 0.10, 0.15, 0.20, 0.30, 0.40, 0.50mm

MW-388M LENGTH 100mm WIDTH 12.7mm 13 BLADES THICKNESS 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.09, 0.10, 0.15, 0.20, 0.30, 0.40, 0.50mm

MW-389M LENGTH 100mm WIDTH 12.7mm 13 BLADES THICKNESS 0.05, 0.10, 0.15, 0.20, 0.25, 0.30, 0.40, 0.50, 0.60, 0.70, 0.80, 0.90, 1.00mm

Features

• Used in workshops for measuring gaps between shafts, bearings and electrical contacts
• Nominal thickness marked on each blade
• Blades are hardened, tempered and polished steel, 12.7mm wide
• Manufactured to DIN 2275 standard
