$7.45 – $108.77
** Downloadable PDF Product Information Sheet **

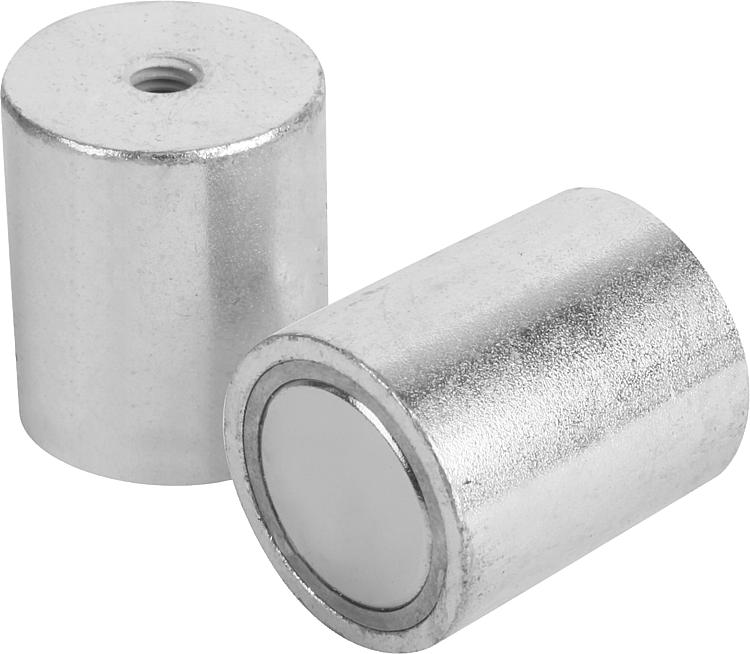

Material: Housing, steel.
Magnetic core NdFeB.
Version:Housing, galvanized.
Note: Shielded system. Deep pot magnets are used for mounting in steel and iron. This requirement is principally stipulated in plant and machine construction.
Can also be used in blind holes.
Size D=50 has 4 magnets Ø18 mm.Temperature range:max. 80°C.

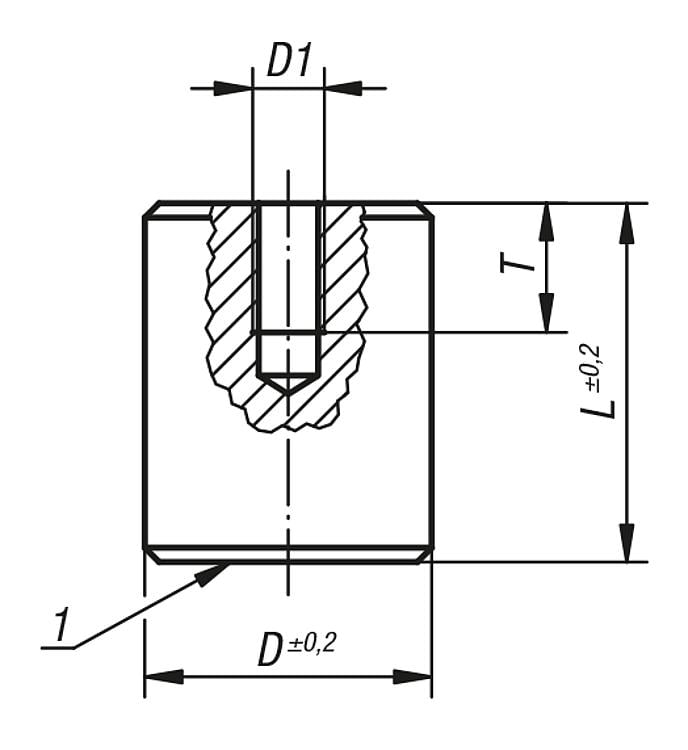

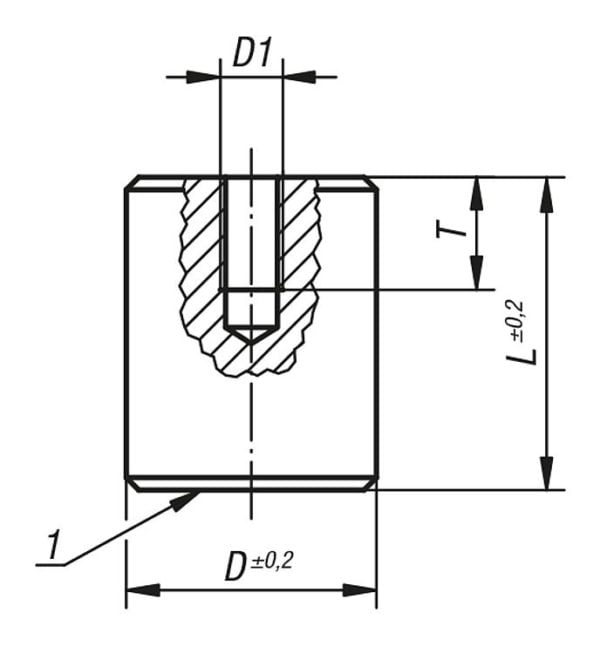

Drawing reference: 1) magnetic face
Special features:
