$25.24 – $90.56
** Downloadable PDF Product Information Sheet **

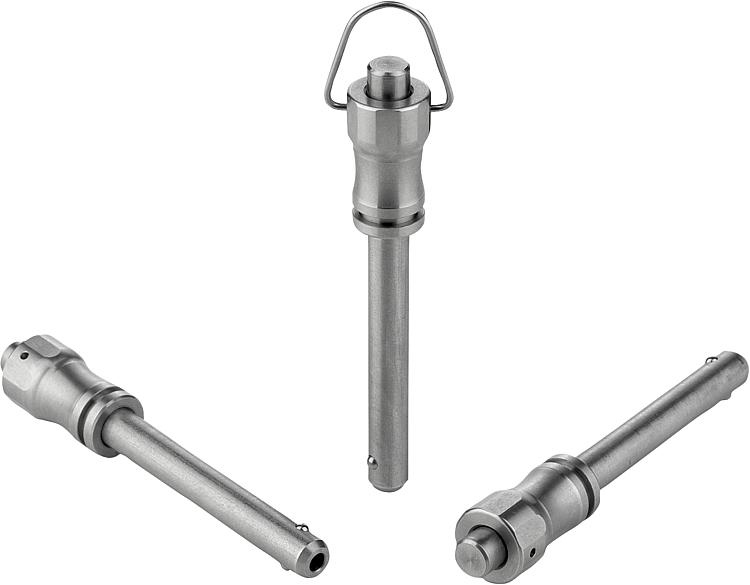

KIPP Ball Lock Pins Stainless Steel K0790A

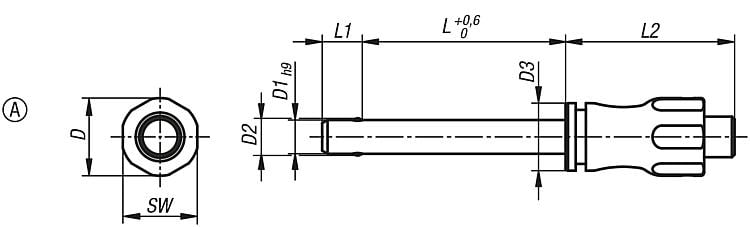

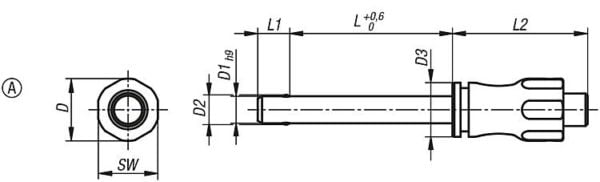

FORM A – without Ring
Material: Grip and push button stainless steel 1.4305.
Pin stainless steel 1.4305. Balls stainless steel 1.4125.
Compression spring and handle stainless steel 1.4310.
Version: Bright.
Note: Ball lock pins are used for quick and easy fastening and joining of parts and workpieces.
The two balls are disengaged by pressing the push button and the pin can be slipped into holes in the workpieces. Release the button to lock the balls and secure the connection.
Shearing force double-shear (F) = S · τ aB max.
Accessory:
Safety spiral cable K0367.10200
Retaining cable with loop K0367. …..
Key ring K0367.15/19/23
Bushing for ball lock pins K0724….
Special features:
RoHS
