$28.34 – $102.70
** Downloadable PDF Product Information Sheet **
Ergonomic handle – Thermoplastic.
Pin & Push button 1.4305 stainless steel
Balls 1.4125 stainless steel.
Spring 1.4310 stainless steel wire.

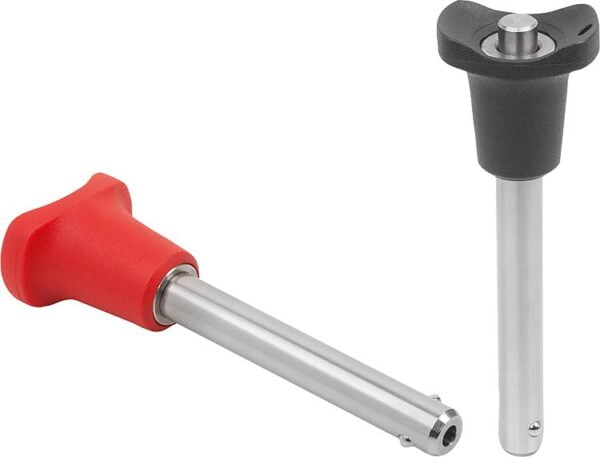

Handle colour options black or traffic red (this listing black only – red available by order)
Ball lock pins are used for quick and easy fastening and joining of parts and workpieces. The two balls are disengaged by pressing the push button and the pin can be slipped into holes in the workpieces. Release the button to lock the balls and secure the connection. An option for connecting a retaining cable is provided.
Shear force double-shear (F) = S · τ aB max.
Accessory: Bushes for ball lock pins K0724 / Retaining cables K0367 / Key ring K0367
