$44.86 – $163.51
** Downloadable PDF Product Information Sheet **

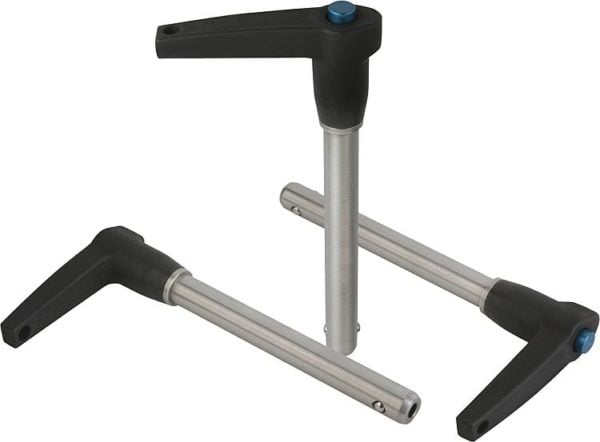

KIPP Ball Lock Pins L-Grip K0642
Material: Pin stainless steel 1.4542.
Grip die-cast aluminium EN-AC 46000.
Push button aluminium EN-AW 2024 T4.
Balls stainless steel 1.4125.
Compression spring stainless steel.
Grip die-cast aluminium EN-AC 46000.
Push button aluminium EN-AW 2024 T4.
Balls stainless steel 1.4125.
Compression spring stainless steel.
Version: All stainless steel parts passivated.
Pin hardened to min. 40 HRC.
Grip black anodised.
Push button blue anodised.
Balls hardened to 58 +4 HRC.
Pin hardened to min. 40 HRC.
Grip black anodised.
Push button blue anodised.
Balls hardened to 58 +4 HRC.
Note:Ball lock pins are used for quick and easy fastening and joining of parts and workpieces. The two balls are disengaged by pressing the push button and the pin can be slipped into holes in the workpieces. Release the button to lock the balls and secure the connection. The ball lock pins can be provided with a retaining cable if required.The hardened, high-tensile stainless steel pin permits extreme loads with low wear.
Shearing force double shear (F) = S · τ aB max.
Shearing force double shear (F) = S · τ aB max.
Accessory: Safety spiral cable K0367.10200
Retaining cable with loop K0367. …..
Key ring K0367.15/19/23
Bushing for ball lock pins K0724….
Retaining cable with loop K0367. …..
Key ring K0367.15/19/23
Bushing for ball lock pins K0724….
