$50.86 – $124.34
** Downloadable PDF Product Information Sheet **

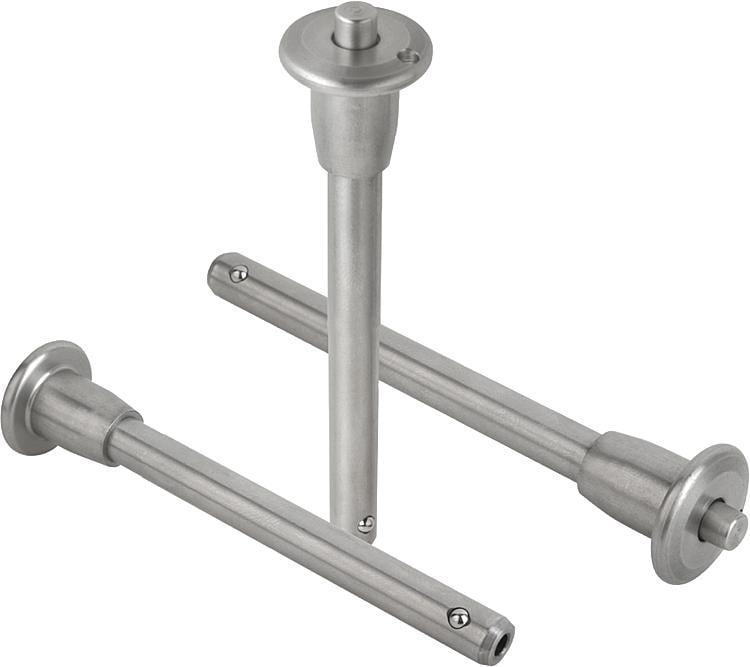

K0641 Ball Lock pins with mushroom knob, self locking, stainless steel
Material: All stainless steel parts passivated.
Pin hardened to min. 40 HRC.
Balls hardened to 58 +4 HRC.
Note: Ball lock pins are used for quick and easy fastening and joining of parts and workpieces. The two balls are disengaged by pressing the push button and the pin can be slipped into holes in the workpieces. Release the button to lock the balls and secure the connection. An option for connecting a retaining cable is provided.
Shear force double-shear (F) = S · τ aB max.
Accessories:
Bushes for ball lock pins K0724
Safety spiral cable K0367
Retaining cable with loop K0367
Key ring K0367
